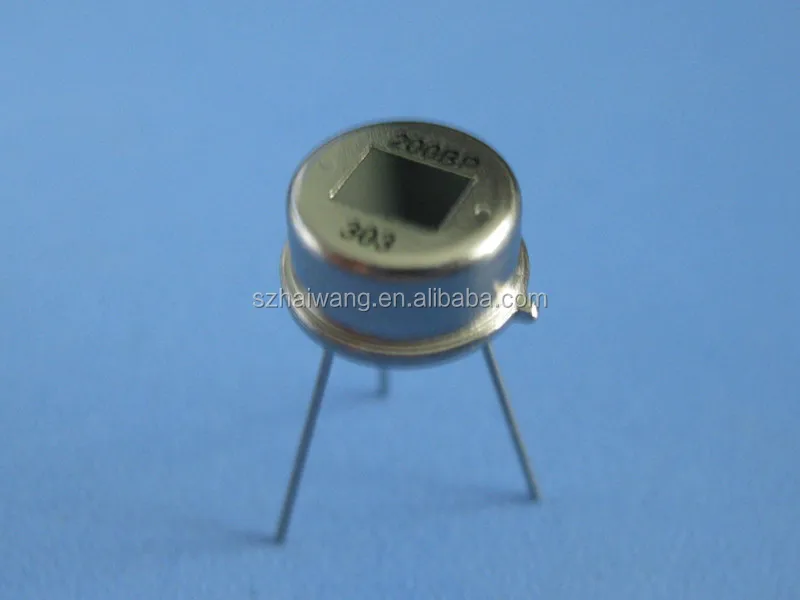

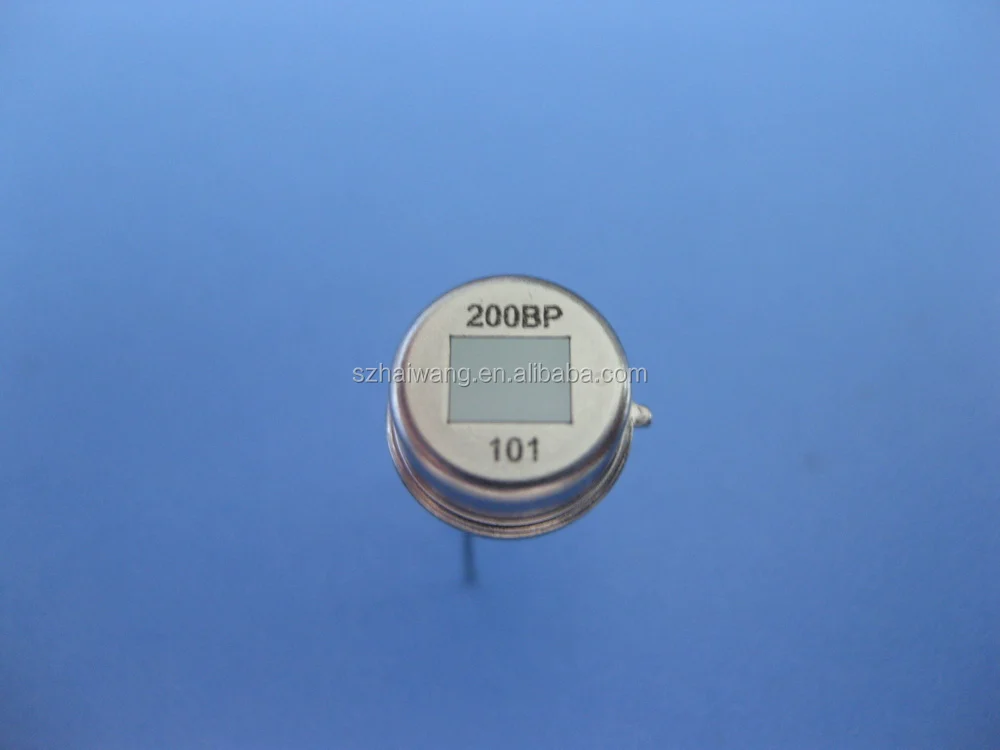

The pyroelectric IR sensor detects infrared radiation by making use of the property that the polarization of pyroelectric materials changes with temperature. Two compensated sensing elements are applied to suppress the interference due to temperature variation. As a result, the operating stability of the sensor is greatly improved.
Directions for Use
1.The above specifications are obtained with R2=47KΩ and R2 is adjustable according to user’s needs.
2. Pay attention to the location of the sensing element and the dimension of the field of views so as to obtain an optimal optical design.
3. All the measurements of voltage signals adopt peak-to-peak value calibration. The EA and EB in the balance indicate the peak-to-peak values of the voltage output signals of the sensing element respectively.
4. Sensor leads should be bent more than 4mm from base of housing and soldering made with a minimum lead length of above 4mm.
5. Reading directions carefully before use. Pay special attention to a correct connection of sensor leads.
Main Market Countries:
China, Korea, Turkey,India, North America, South America,etc.
We have 10 years of manufacture experience and PIR Sensor.
Good quality and best price is for you!
Company Info ByCindy
Company Information Shenzhen HaiWang Sensor Co., Ltd is specialized in developing, manufacturing and export of Microwave Radar/Sensor Module, PIR sensor, PIR IC, PIR LENS, NTC Thermisters, NTC temperature sensor, PTC Thermistor, LDR sensor, light sensor, Fresnel lens, PMMA solar Lens, Stage Lens, PVC Magnifying Lens, optical lenses and other sensitive components.
Delivery By Cindy
FAQ By Cindy
1. What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2. What is your delivery date?
A: The delivery date is about 1-4 days after receipt of payment.
3. What is your payment term?
A: We accept T/T, western union, money gram, Alipay, Paypal.
4. Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL, or you can call your courier to pick up from our office.
5. How do you carry out quality control?
A: Quality is our priority. Our QC always attaches great importance to quality control from the very beginning to the end.
6. Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders; welcome all types of customized orders and cooperation.
