microwave motion sensor module HW-N9MW for ceiling light microwave radar module

FOB Reference Price:Get Latest Price
US $1.2-2 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HW
Model Number:
HW-N9MW
Usage:
Vibration Sensor
Theory:
Ultrasonic Sensor
Output:
Analog Sensor
Type:
HW-N9MW
Size:
23*22*6mm
Input voltage:
3.7-24V
Output voltage:
3.3/0V
Frequency:
5.8GHz
package:
by tray
color:
green
Detection distance:
2-20m(adjustable)
time:
2-300s(adjustable)
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
by tray
Port
shenzhen
Lead Time :
Shipped in 5 days after payment

microwave motion sensor module waterproof ultrasonic sensor module for ceiling light microwave motion sensor PIR sensor

For more details, please contact me
Cindy Wang
Marketing Director
Phone/whatsapp:+86-18682200597  Tel:+86-755-82867860-615
WeChat: wyxwater
QQ:1662616935

 Email me : haiwang5(at)szhaiwang.com



typeHW-N9MW
size23*22*6mm
input voltage3.7-24V
output voltage3.3/0V
packingby tray
delivery timewithin 2 days



Please pay more attention,for the following informations and pictures.If any question,welcome to contact us anytime.

HW-N9MW Data Sheet

HW - N9MW】 is a double plate composite type microwave induction module, its appearance artful little , compact circuit structure is simple, low cost and stable performance, cost-effective, especially suitable for supporting the intelligent appliances, security products, lighting products and other secondary development in the field of electronics.

Technical design and evaluation of the test

NO

parameter item

design specifications

application and testing

estimate

01

Voltage input

DC3.7V~24V

12V Li-batter,It working good

qualified

02

Operating voltage

Vcc =+3.3V or +5V

LDO Vcc=3.3V

qualified

03

Input current

static≤7mA;dynamic≤8mA

static≤2.2mA;dynamic≤2.8mA

qualified

04

Output way

High&low level:VH≈Vcc/VL=0V

High&low level≈Vcc ≈3V

qualified

05

Sensing distance

Normal=10m ;Custom=0.5m-20m

Horizontal test

Indoor:Normal≥10m

Parking lot:Normal=8m-10m;

qualified

06

Delay time output

Default 2s-3s

1.5s  2.5s

qualified

07

Frequency

2.5GHz-3.2GHz(Basic standard)

(Accord the Basic specification)

qualified

08

The dimensions

2PCBs stacked:L23×W22×D5 mm

2PCBs stacked:L23×W22×D5 mm

qualified



The main parameters are reaching or higher than design value。Its qualified.

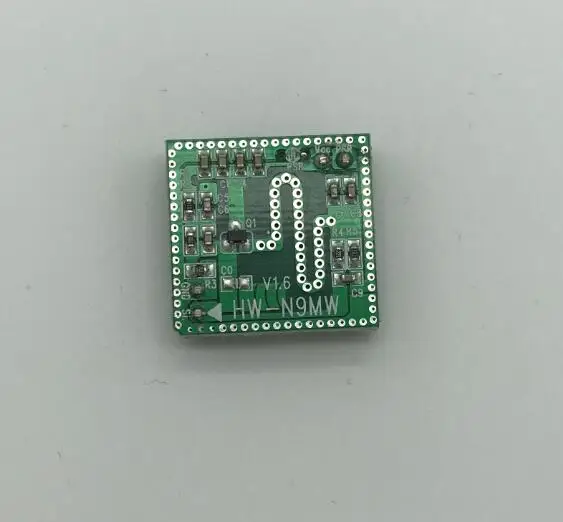

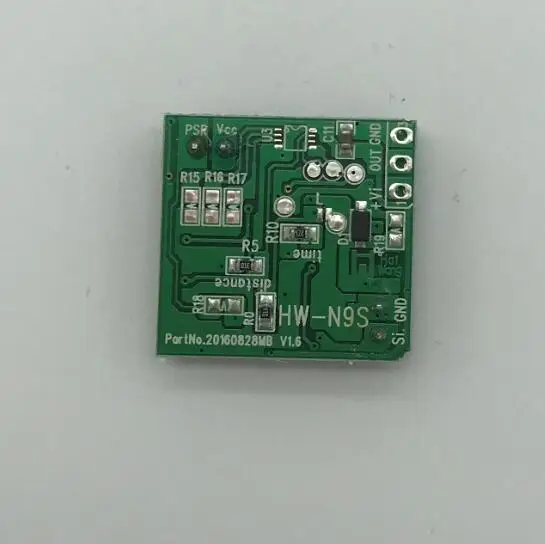

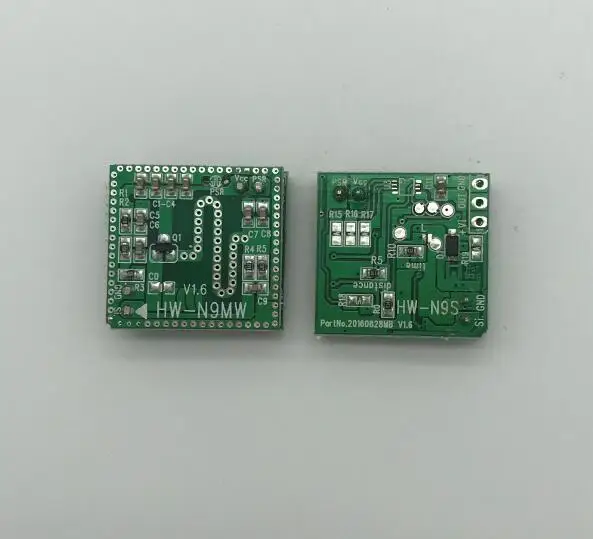

The appended drawings: the appearance of the floor plan and the real figure.
