HW-MS03 LED Microwave Sensor Microwave Radar Sensing Module 8-10M Home Control Body Motion Detector Light Switch

FOB Reference Price:Get Latest Price
  • 1000 - 4999
    US $1.00
  • >=5000
    US $0.80
Supply Ability:
10000000 Piece/Pieces per Week
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Haiwang(HW)
Model Number:
HW-S03
Usage:
Ray Sensor
Theory:
Ultrasonic Sensor
Output:
Analog Sensor, Analog Sensor
Operating Voltage:
3.3V
Distance:
10m adjustable
Delay time:
default 2s (3-200 s adjustable)
Supply voltage:
DC 3.7V-24V
Trigger way:
Repeat(default)
Angle:
180*360
Current::
<8mA
size:
40*20*3mm
Number of Layers:
two
Packaging & Delivery
Packaging Details
Tray packing
Delivery Time
2days

LED Microwave Sensor Microwave Radar Sensing Module 8-10M Home Control Body Motion Detector Light Switch



For more details, please contact me
Cindy Wang
Marketing Director
Phone:+86-18682200597  Tel:+86-755-82867860-615
WeChat: wyxwater
QQ:1662616935
Product Description


Detail:

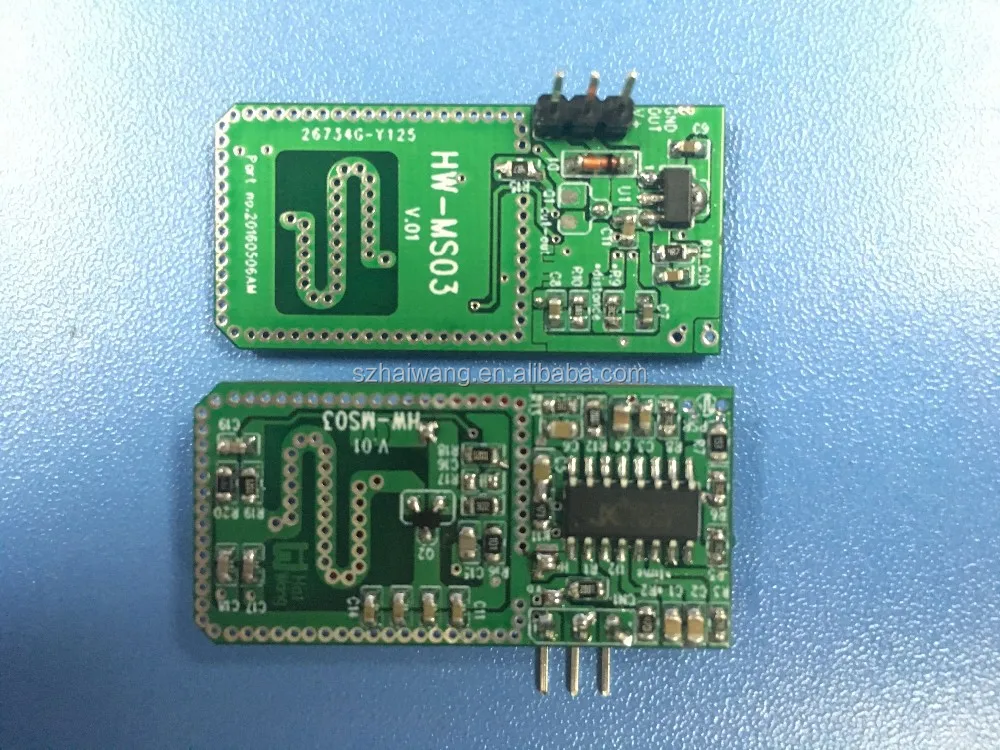

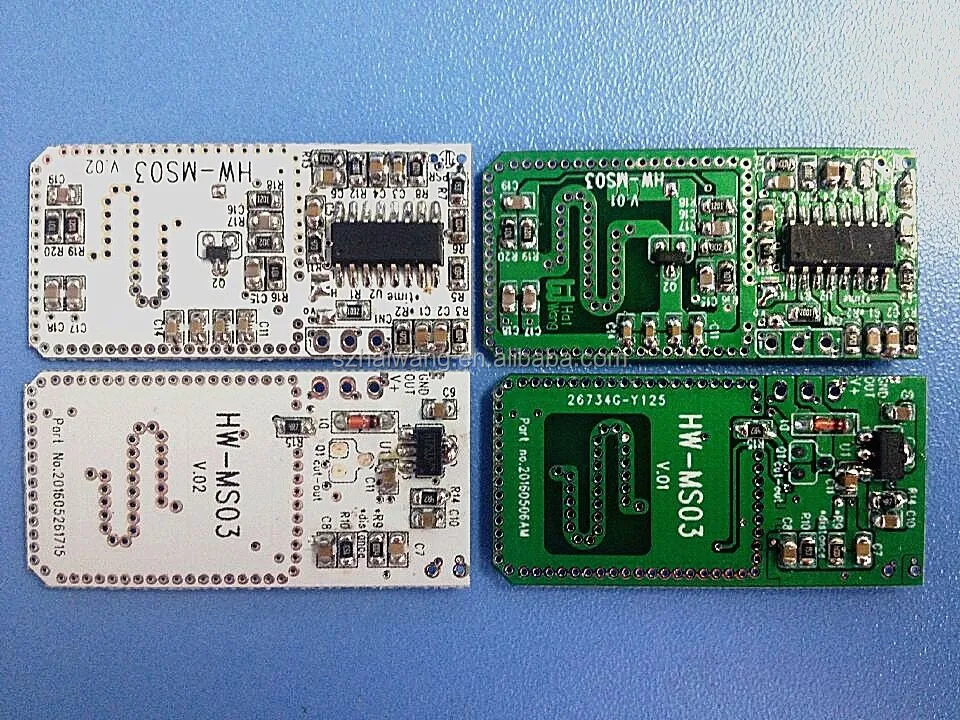

HW - MS03 is our company newly developed MS series in a single PCB microwave sensor module. The product is particularly suited to ultra-thin design of intelligent household appliances, security products, lighting products and other electronics. This unique circuit structure design, function expansion, the strength of the strong compatibility and high cost performance advantages, is the leading the market advantage of the single panel module.





2.Technical parameters:

NO.Items of parameterSpecifications of parameter
01Power Supply input Voltage5V~24VDC(by custom)
02Output voltageVcc=+3.3V
03Input currentStatic Iin≤5mA; Srends Iin≤6mA
04Output WayHigh Low Level VCC=3V
05Sensor distanceDefault:10m(indoor test)
06Delay-time for outputDefault:2sec.
07frequency rangeFT=2.5GHz-5.8GHz
08Outline sizesingle-PCB:40X20mmx3mm
