220V automatic microwave motion sensor switch for led light HW-MC202

FOB Reference Price:Get Latest Price
US $1.58-3 / Units | 1 Unit/Units AC220V 50HZ microwave induction sensor switch remote sensing (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HW
Model Number:
HW-MC202
Usage:
Temperature Sensor
Theory:
Current Sensor
Output:
Switching Transducer
Name:
AC220V 50HZ microwave induction sensor switch remote sensing MC202
Power:
AC 220V 1500W
Input Voltage:
AC220V
Output Voltage:
Customized
Trigger Way:
NonRepeat(Default)
Delay Time:
2s(Default)
Size:
62*38*30mm
Distance:
10m(Default),customized
microwave induction switch:
radar induction switch
New Product:
Offer Sample
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month AC220V 50HZ microwave induction sensor switch remote sensing
Packaging & Delivery
Packaging Details
standard packing for 220V automatic microwave motion sensor switch for led light HW-MC202
Port
Shenzhen / Hongkong, China
Lead Time :
Shipped in 1 days after payment

220V automatic microwave motion sensor switch for led light HW-MC202



Product Description

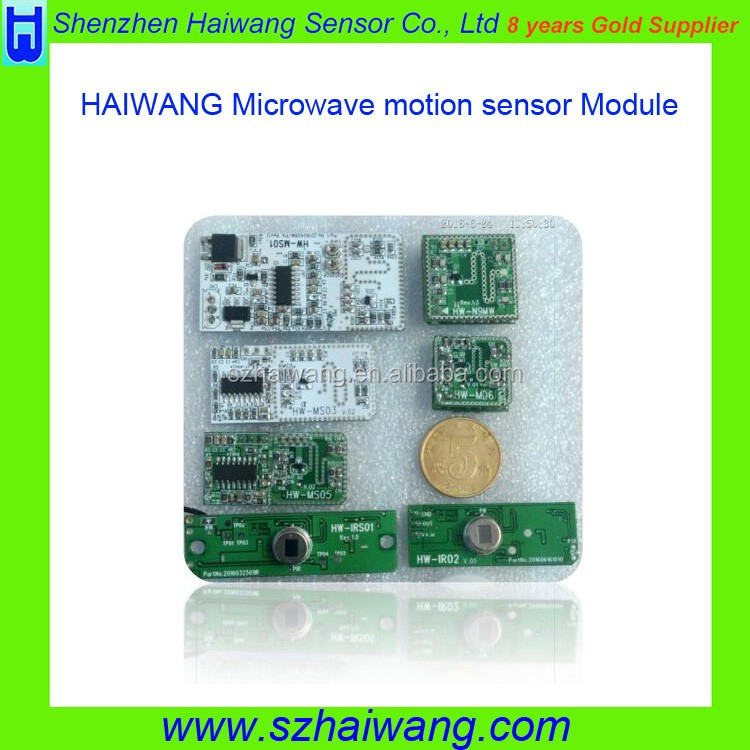

Many models of Microwave modules for your choice: HW-M10, HW-M09, HW-M08, HW-MS01,HW-MS03,HW-MS05,HW-MS07,

HW-MC201,HW-MC202,HW-M21, welcome to ask us for sample testing!

Specifications:



HW - MC202 microwave induction switch adopts the planar antenna transmitting and receiving. Induction object for moving objects (or car), after induction to the output voltage signal, for active microwave induction, former hemisphere, Out by relay On/Off.
Widely used in security monitoring, intelligent systems, control of lamps and lanterns, automatic doors,garage, corridor, roads, etc. Welcome to negotiate!



Features:



1.Is not affected by temperature, humidity, air flow, such as dust, noise, light and dark, strong
anti-jamming capability.
2. microwave module is a pattern to launch out, no dead Angle blind area, wide coverage.
3. microwave is reflected more easily in the process of transmission, sensitivity inside will be better,
outdoor is a bit poor.
4.can signal through the glass, obstacles such as trees, plastic (this will make the induction distance less)
5. professional design planar microstrip antenna, low power consumption, ROHS, high product
consistency.Can modify the module according to your design.

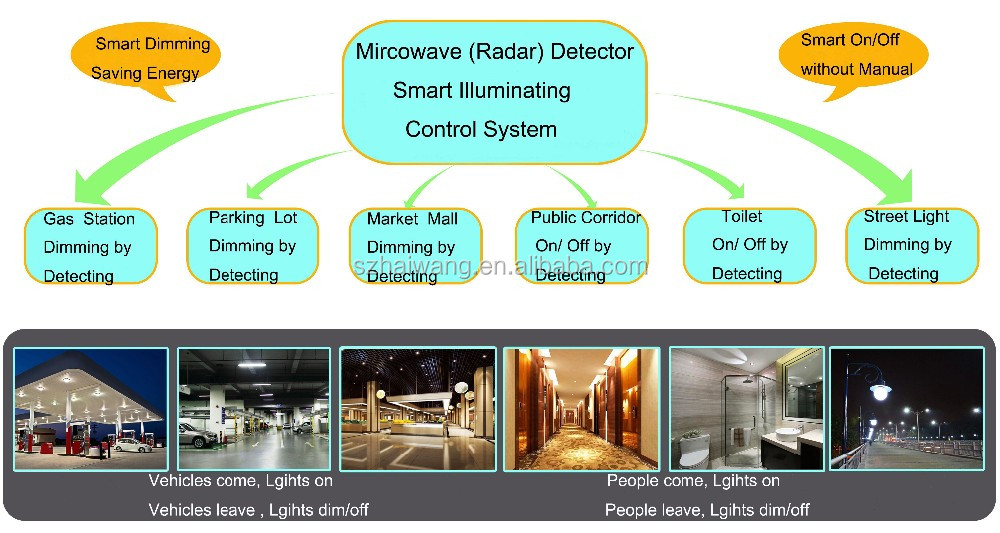

Applications:



Microwave modules can be widely used in security monitoring, automatic doors, automatic lights, power automatic switch, automatic street light switches, industrial automation control, indoor and outdoor security systems, automatic door control switch, ATM automatic teller machines, automatic recording control system place and so on.



HW-MC202 Technical parameters:

Frequency50HZ
Input voltageAC220V (Custom AC100V/60HZ)
Output voltageCustomized
Distance10m(default,can be customized)
delay time2s(default,can be customized)
SizeL62*W38*D30mm


Warm note:

PowerAC 220V (Load Capacity: AC 220V/DC30V: 10A),Rated Load:1500W
False Action

1.Pay attention to the power supply related requirements, refer to the first one .
2. If anybody there about 1m distance from the module.
3.You shall test the module after 10seconds.
4 It is very sensitive if test indoor. People need stay far away.Test it when no signal output
5 current is very weak when test.Too much current is easy to cause false positives.
Delay timeDefault one is 2S,NonRepeat trigger way
Abs coverCan custom as client's request

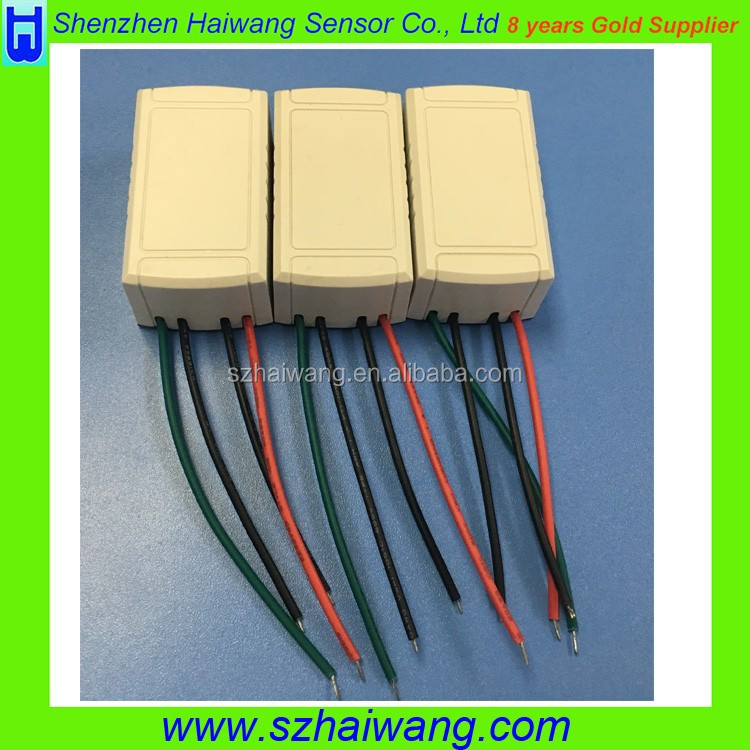

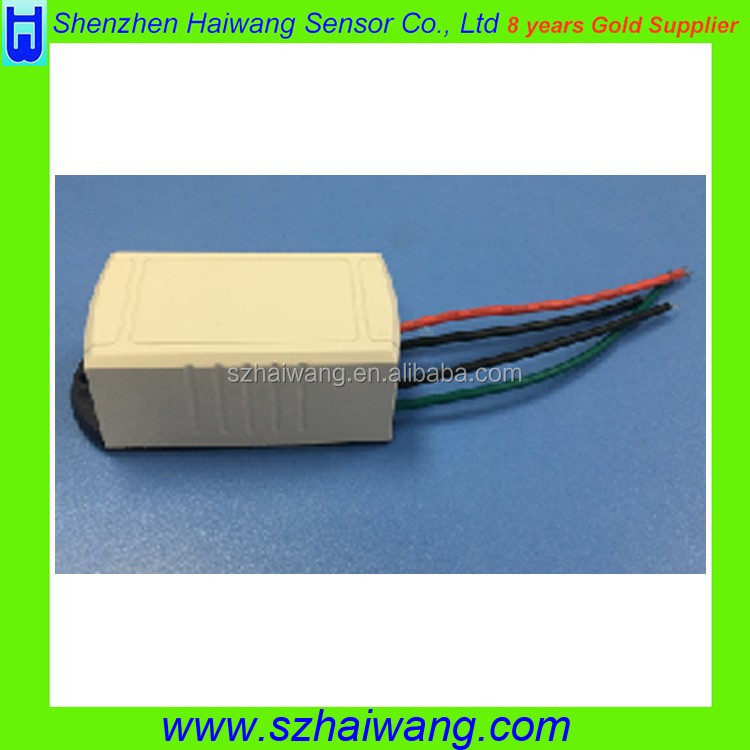

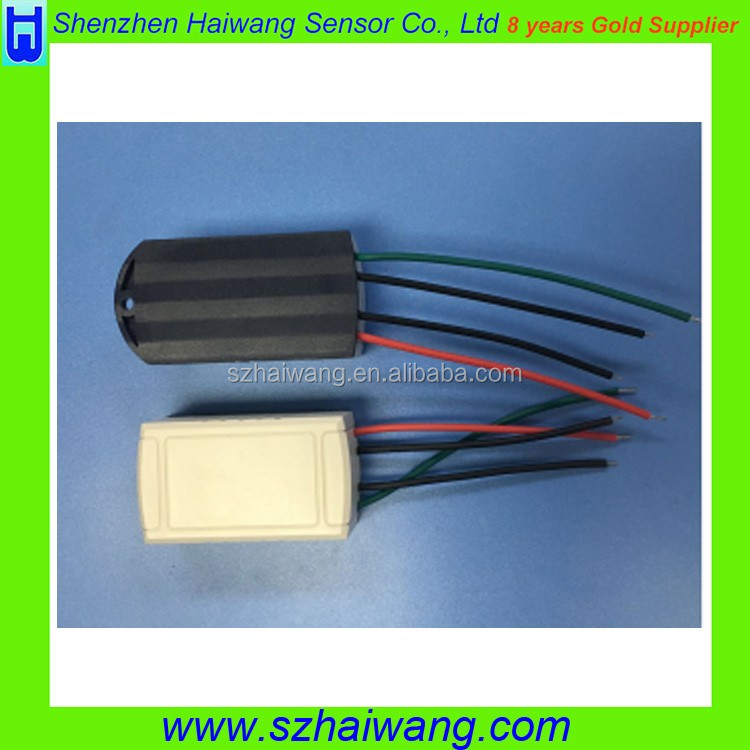

Product Photo Show for AC220V 50HZ microwave radar induction switch with automatic control function MC202:
