HW8002 PIR Motion Sensor Module PIR infrared human body sensor switch lamps intelligent HW-8002 PIR infrared sensor module

FOB Reference Price:Get Latest Price
US $1.5-2.5 / Pieces | 1 Piece/Pieces pir infrared human body sensor switch (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HW
Model Number:
HW8002
Usage:
Ray Sensor
Theory:
Optical Sensor
Output:
Analog Sensor
PIR control module:
pir human body sensor switch lamps intelligent infrared sensor module
Compact size:
24*32mm
Supply voltage:
3.7-12V
High sensitivity:
reliability
infrared technology:
automatic control
Operation Current:
400uA at 3.3V
PIR input Gain:
68dB
Output Pulse Width:
0.5 sec min
Operating temperature:
-20--75
High RFI immunity:
welcome OEM
SupplyAbility
SupplyAbility:
10000 Parcel/Parcels per Week pir infrared human body sensor switch
Packaging & Delivery
Packaging Details
25pcs/tray
Port
Shenzhen
Lead Time :
Shipped in 1 days after payment

HW8002 PIR Motion Sensor Module PIR infrared human body sensor switch lamps intelligent HW-8002 PIR infrared sensor module

wide angel long distance pir motion  sensor module

For more details, please contact me
Cindy Wang
Marketing Director
Phone/whatsapp:+86-18682200597  Tel:+86-755-82867860-615
WeChat: wyxwater
QQ:1662616935

 Email me : haiwang5(at)szhaiwang.com

Product Description

HW8002 PIR control module



key features of sensor module:

*A PIR detector combined with a fresnel lens ,PCB, analog IC

*limited components to form the module.

*High level output of variable width is provided.

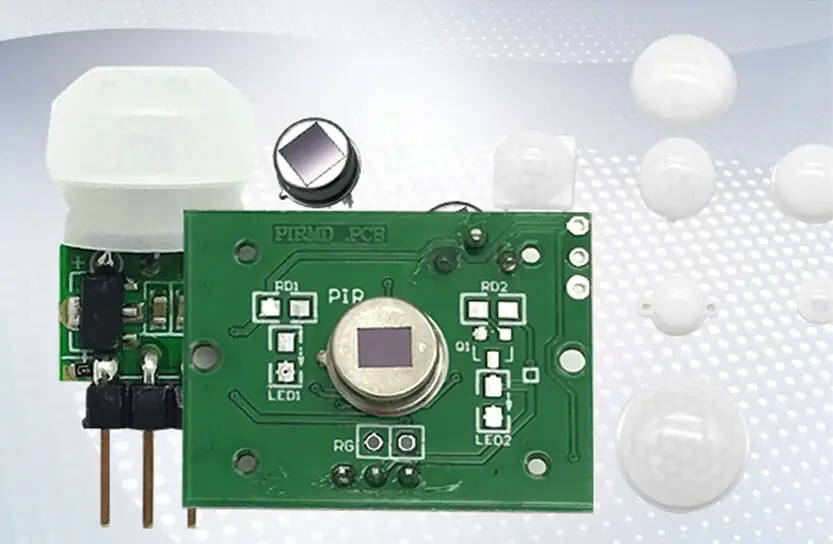

HW8002 is a pyroelectric sensor module which developed for human body detection. A PIR

detector combined with a fresnel lens(can choose different size) are mounted on a compact size PCB togather with an analog IC, BISS0001, and limited components to form the module. High level output of variable width is provided.



PIR Sensor module Features and Electrical Specification

Compact size (25 x 35 mm)
Wide range of operation voltage 4-12V

Special output pilse width can be requested

TTL output can be directly connected to micro controller or logic device

High sensitivity

High RFI immunity

Power up delay 25sec

Delay time: 5seconds to 8 minutes(as customer requirement)
Operation Temperature: under -20 degree to 70 degress
Infrared sensor: dual element, low noise, high sensitivity
Light sensor: CdS photocell (can be add as customer requirement)



  • Electrical parameter





Product Type





PIR control module HW8002





Operating Voltage Range





DC Voltage 3.7V ~ 12V





Quiescent Current





<50uA





Level output





High 3.3 V / Low 0V (Can be customized)





Delay time





0.5-200S ( adjustable ) range can be made  few tenths - tens of minutes

   (Can be customized)



Blocking time





2.5S ( default ) range can be few tenths - tens   (Can be customized)





Induction angle





10-140 degree





Operating Temperature





-20 - +70 degrees





Distance





0.5-27m   (Can be customized)



 We can custom the module as your request,welcome to ask me.OEM is highly welcomed.

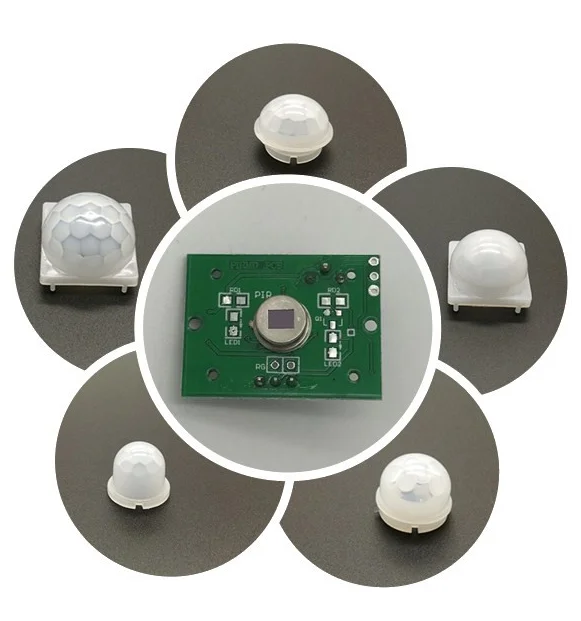

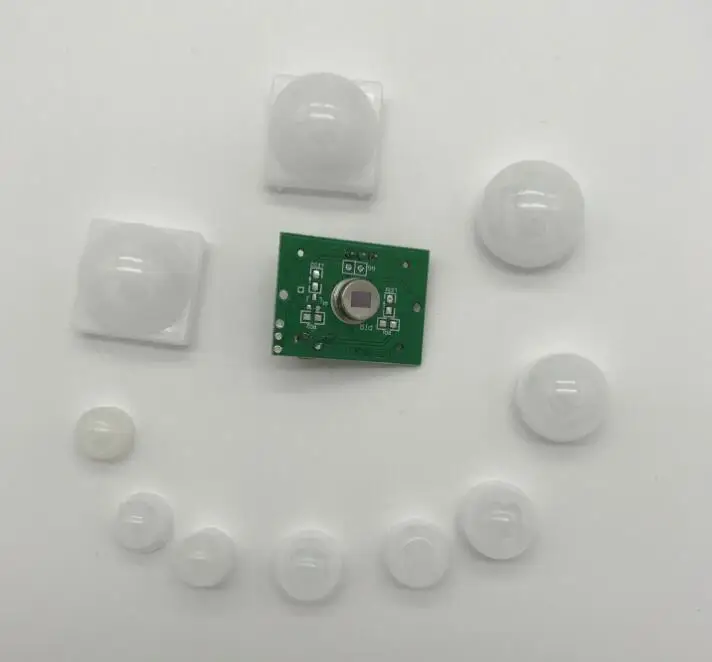

PIR Sensor module with China manufacturer Photoes
