Factory Supply Microwave Doppler Sensor Module

FOB Reference Price:Get Latest Price
  • 1 - 999
    US $2.50
  • >=1000
    US $1.80
Supply Ability:
100000 Piece/Pieces per Week
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HW
Model Number:
HW-M09
Usage:
Microwave Motion sensor
Theory:
Droppler
Output:
Digital Sensor
Item:
Microwave Motion Sensor Module
Model:
HW-M09
Frequency:
10.525GHz
Input Voltage:
6-24V
Output Voltage:
5V
Distance:
10m/Customized
Delay Time:
2s/Customized
Dynamic Current:
<5mA
OEM:
Available
Size:
19*18*6mm
Packaging & Delivery
Packaging Details
50PCS in One Tray
Delivery Time
Samples can delivery within 1-3 days, Bulk order within 5-15day

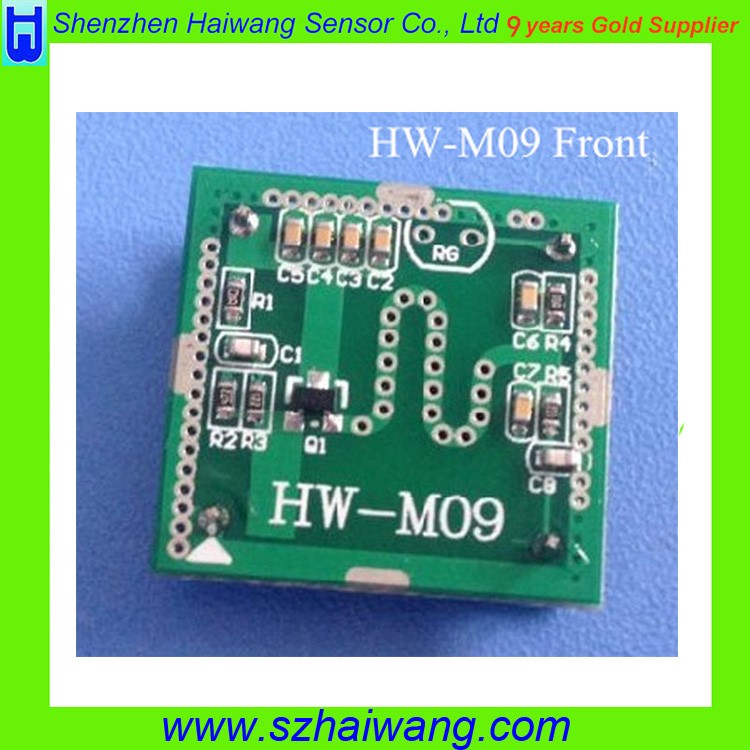

Factory Supply Microwave Doppler Sensor Module

Product Description

Specification

Name Microwave Radar Sensor Module
ModelHW-M09
Frequency

10.525GHZ

Input voltage

6-24V

Output voltage

5V/0V

Trigger Way

Repeat(Default)/Customized
Distance 2m
Time2S(defualt)/Customized
Size 19*18*6mm
OEMAvailable



Working Principle
Based on the Doppler, HW-M09  microwave motion module can output the useful controllable electrical signals(H-1/L-0) after triggering the microprocessor to work once detected moving objects with the planar antennas which can transmit and receive the HF electromagnetic wave.

Widely used in security monitoring, intelligent systems, control of lamps and lanterns, automatic doors, garage, corridor, roads, etc.

Features
1.No impact on temperature, humidity, airflow, dust, noise, light, dark and other factors because of its stronger anti-interference capacity.
2.Wide coverage without blind zone because of its field pattern emission.
3.The sensitive of the product indoor is better than outdoor's because the microwave is easier to reflect on the transmission
4.Professional design of the microwave with flat antenna, low-power, ROSH and high product consistency.

5. Small size like a corn that can save more room.

Notes
1. Voltage, current, distance, time and size can be customized.
2. Customized distance ranging from 1-20m; customized time ranging from 0.1-600s. Others can consult our engineers.

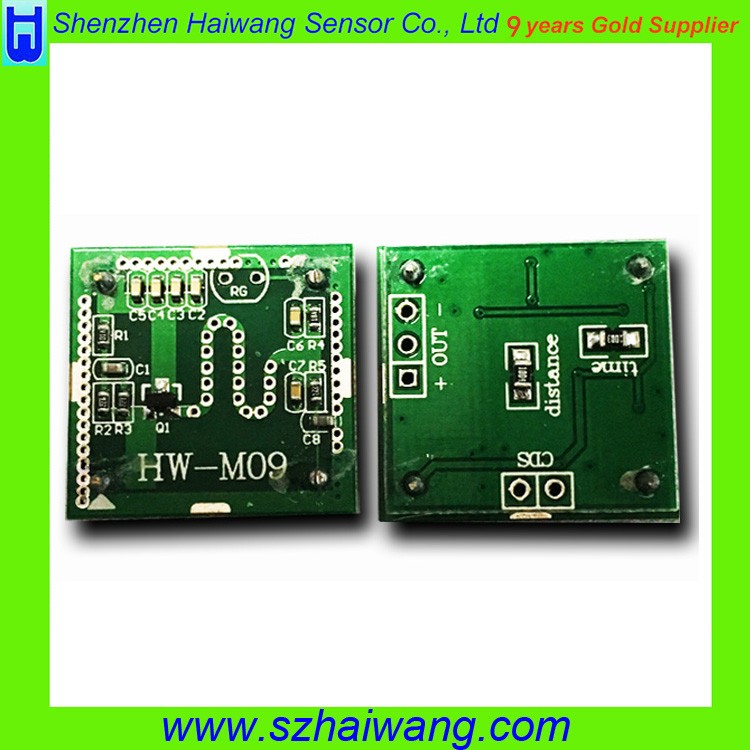

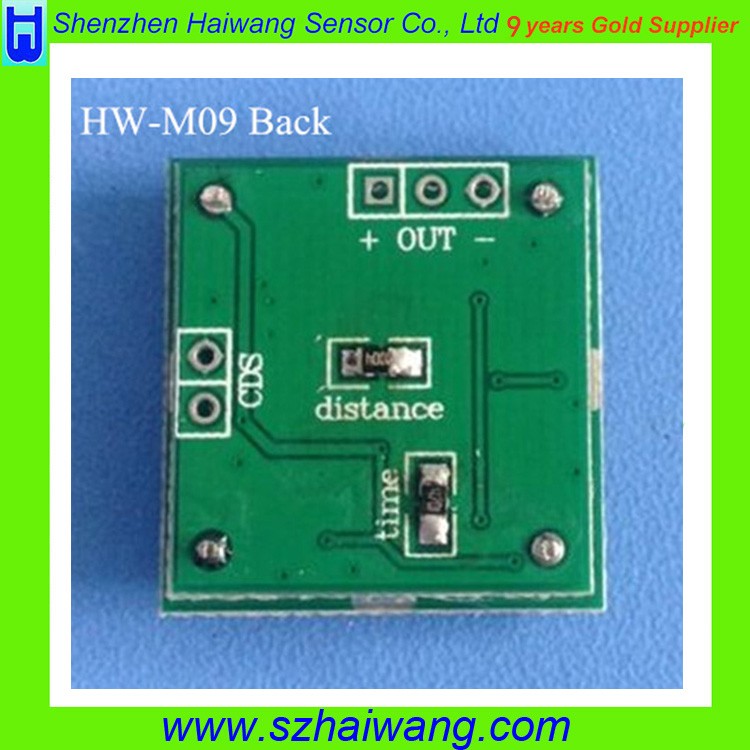

3.The module has reserved CDS photo-resistance port that can be used in light control function. The default is "Repeating "
4.We suggest that you should use our regular products because we would charge extra fee on some customized projects. More details could talk with us.

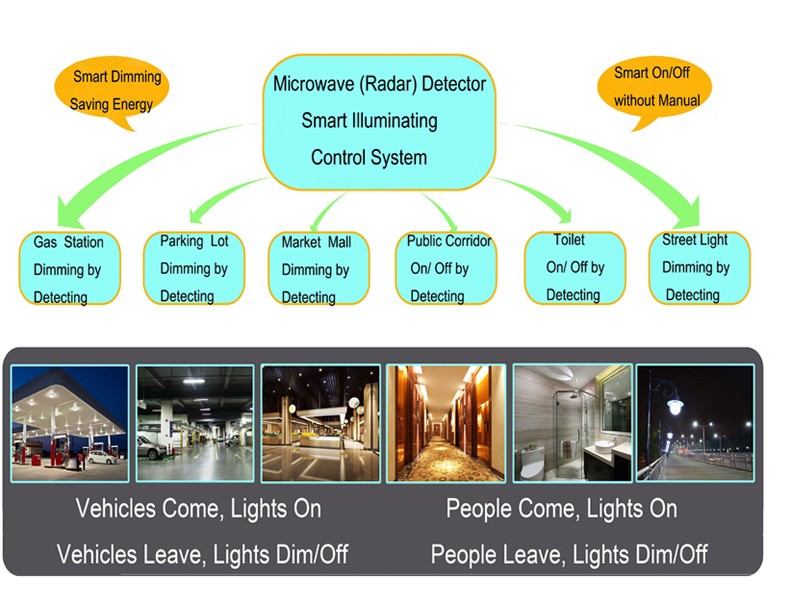

Microwave Radar Sensor Module Application

Other Microwave Radar Sensor Module





Packaging & Shipping

 50 pieces  in a tray



 Samples can delivery within 1-3 days, Bulk order within 5-15days.



Company Information

Haiwang is dedicated to design and manufacture outdoor, security and some novelty items. Such as Fresnel lens,PIR motion sensor,PIR module, PIR IC,sensitive resistance,nap zapper, card magnifier,led bike light,MP3 hunting bird player,selfie monopod and personal alarm etc. Our business area covers all over the word like United States, Europe, Latin America, Africa, Southeast Asia.


We have more than 10-year experience on export and ODM & OEM, and products passed CE/ROHS/FCC ect. Our R&D Dep. research a series new products with unique functions, like hunting bird player with Timer (on/off) and encryption; HID flashlight with SOS, three gears(DIY choice). Our products win good reputation from customers all over the world.


We have a wonderful team who are unique, strong, professional, capable. Every time we make miracle together, all of us are proud of the company, realizing own value and grow up together.


Best team do the best work. "Quality is the basis,Trust is everything".
HaiWang insists on supplying good products and best services all the way.

LOGO

OFFICE

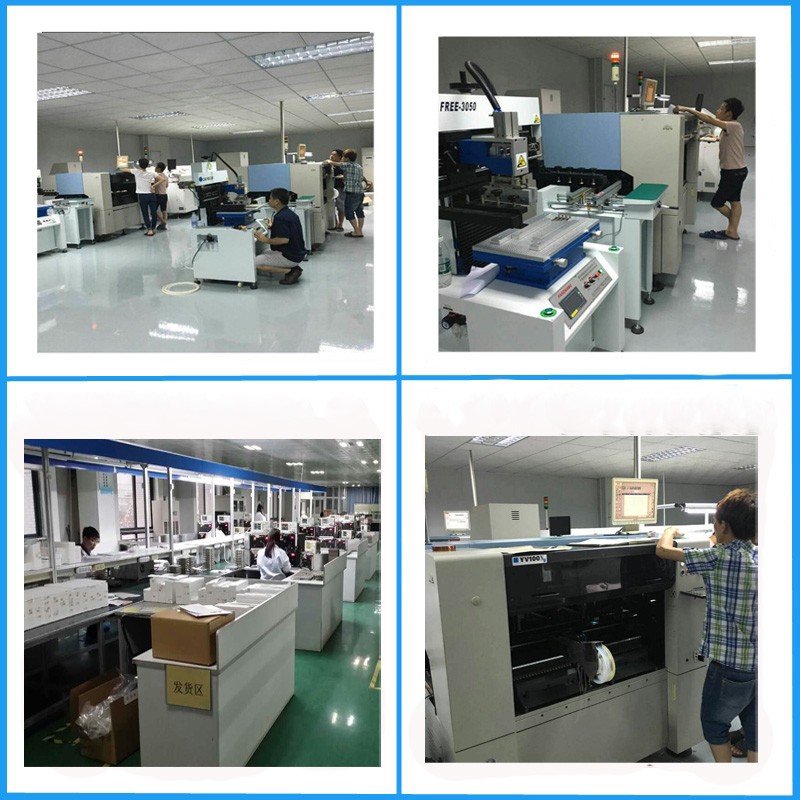

FACTORY
