PPTC Resettable PTC Thermistor Cartridge Fuse Types Used for Communication Equipment

FOB Reference Price:Get Latest Price
US $0.08-0.25 / Box | 1 Box/Boxes PPTC Resettable PTC Thermistor Cartridge Fuse (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Week PPTC Resettable PTC Thermistor Cartridge Fuse
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HW
Model Number:
JKK series
Usage:
High Voltage
Breaking Capacity:
High
Safety Standards:
CSA
Name:
Resettable PTC Cartridge Fuse Types Used for Communication Equipment
Customized:
Highly Welcome
Rc:
Switch resistance
Rp:
Max operating resistance
Tc:
Curie temperature
Holding Current:
30mA~14A
Max Withstand Voltage:
6~600V
Sample:
free sample
Response time:
Quick
Feature:
Over Current Protection
Packaging & Delivery
Packaging Details
50 pieces in a polybag for PPTC Resettable PTC Thermistor Cartridge Fuse Types Used for Communication Equipment
Delivery Time
Shipped in 2 days after payment

PPTC Resettable PTC Thermistor Cartridge Fuse Types Used for Communication Equipment

Product Description

Working Principle

As an overcurrent protection component, traditional fuse only protect one time and need to replace another once burned. The recoverable fuse, one newly overcurrent protection component, has overcurrent protection and auto recoverable.



Overcurrent protection

JKPPTC component is at the low resistance state to ensure the circuit work normally. When encountered short circuit or high current, JKPPTC component can heat by itself to improve resistance with limiting small enough current to protect circuit.



Environment Temperature Effective



The current is on the decrease by recoverable fuse when environment temperature is higher than 25°C. The current can 100% recover by recoverable fuse when the operating temperature is 20°C in the circuit. If more than two time current occurs, the recoverable fuse can work.  The higher environment temperature and current passe through, the shorter the working time is.



Classification

1.Keeping Current(IH):  the highest current when don’t touch PPTC recoverable fuse under 25  quiescent environment

2.Touching CurrentL(IT): The lowest current when PPTC recoverable fuse resistance becomes lowest one to the highest one under 25℃ quiescent environment.

3.Max Voltage(V max): PPTC recoverable fuse can undertake max working voltage.

4.Max Current(I max):P 35  OTC recoverable fuse can undertake max current
5.Movement time(T trip):The max movement tine under the specified current
6.Movement Power(Pd typ):Dissipation power  when PPT recoverable fuse is in movement state under 25℃ environment

7.Min Resistance (R min): the min zero power resistance under 25  environment

8. Max Resistance: the max zero power resistance under 25  environment



Applications:

1)FOR CAR,

2)Line Protection

3)Electronic control template

4)Engineering and industrial control

5)Testing devices

6)Voltage output

7)telecontrol

8)Fire alarm system

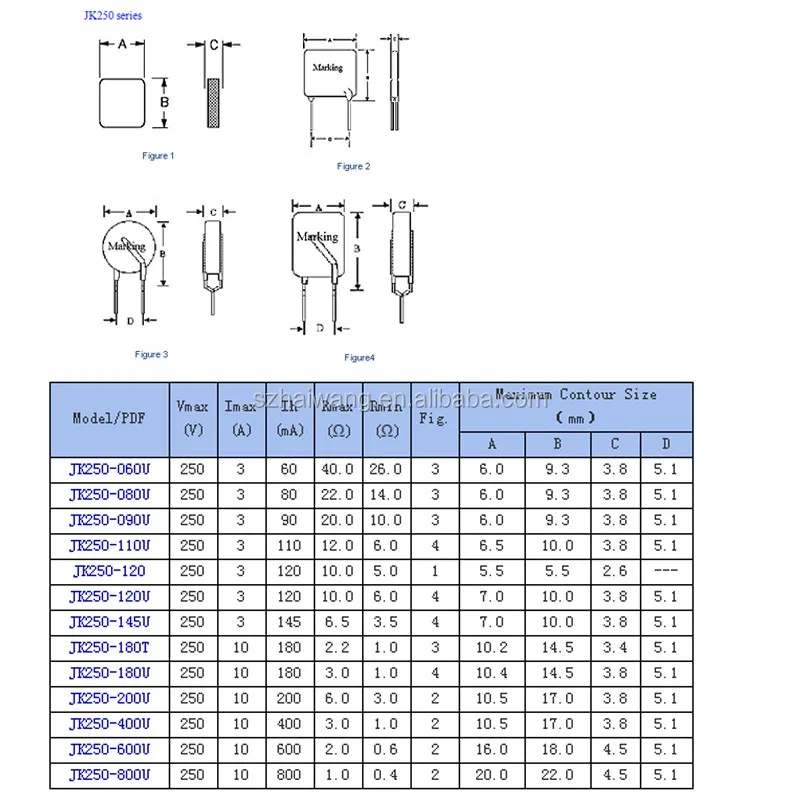

Models for your choice, for more models, please contact with us freely.

Product Photo Show:



Our Services

1.OEM and ODM are welcome.
2.Small quantity order is welcome.
3.Sample lead time: 1-3 days
4. Your inquiry for our products will be replied in 10 hours.

Company Information

 HaiWang is dedicated to design and manufacture electronic components, PIR sensor&lens, IC, sensor module, LDR/CDS and OEM products like LED bike light, driver wake up alarm, personal alarm, card magnifier and so on. Our business area covers United States, Europe, Latin America, Africa and Southeast Asia. We have won good reputation from our customers for 12 years.

FAQ



1.What is your MOQ?

A: We provide you small MOQ for each item, it depends your specific order.

2.What is your delivery date?

A: The delivery date is about 2-7days after receipt of payment.

3.What is your payment terms?

A: We accept T/T, western union, moneygram, Alipay, Paypal. 30% deposit in advance and 70% balance before shipment.

4.Can you send free samples?

A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL, or you can call your courier to pick up from our office.

5.How do you carry out quality control?

A: Quality is our priority. Our QC always attach great importance to quality control from the very beginning to the end.

6.Can you accept OEM orders?

A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.
