PIR human body sensor switch lamps intelligent infrared sensor module
400uA at 3.3V
PIR input Gain:
Output Pulse Width:
0.5 sec min
High RFI immunity:
10000 Parcel/Parcels per Week human body sensor switch lamps intelligent infrared sensor modul
Packaging & Delivery
Standard package for Infrared sensor pir infrared human body sensor switch lamps intelligent infrared sensor module
Shipped in 1 days after payment
Infrared sensor pir infrared human body sensor switch lamps intelligent infrared sensor module
wide angel long distance pir motion sensor module
HW8002 PIR control module
key features of sensor module:
*A PIR detector combined with a fresnel lens ,PCB, analog IC
*limited components to form the module.
*High level output of variable width is provided.

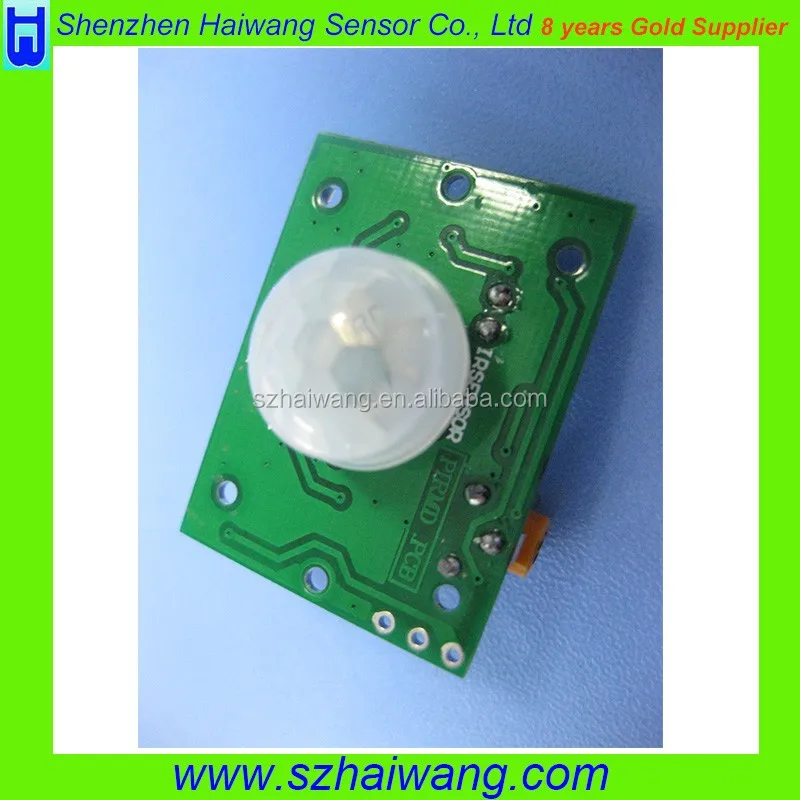

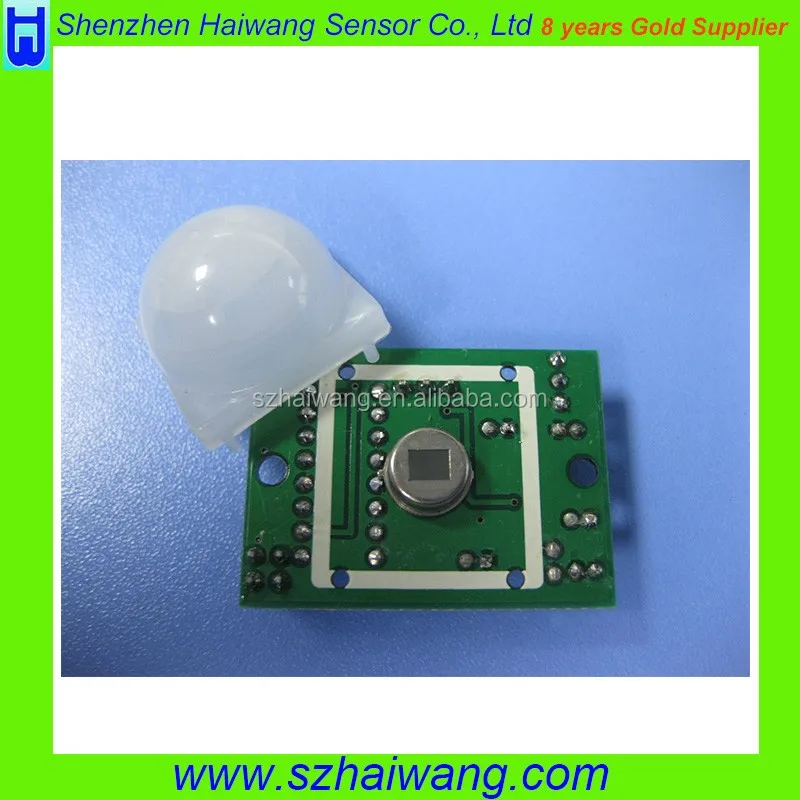

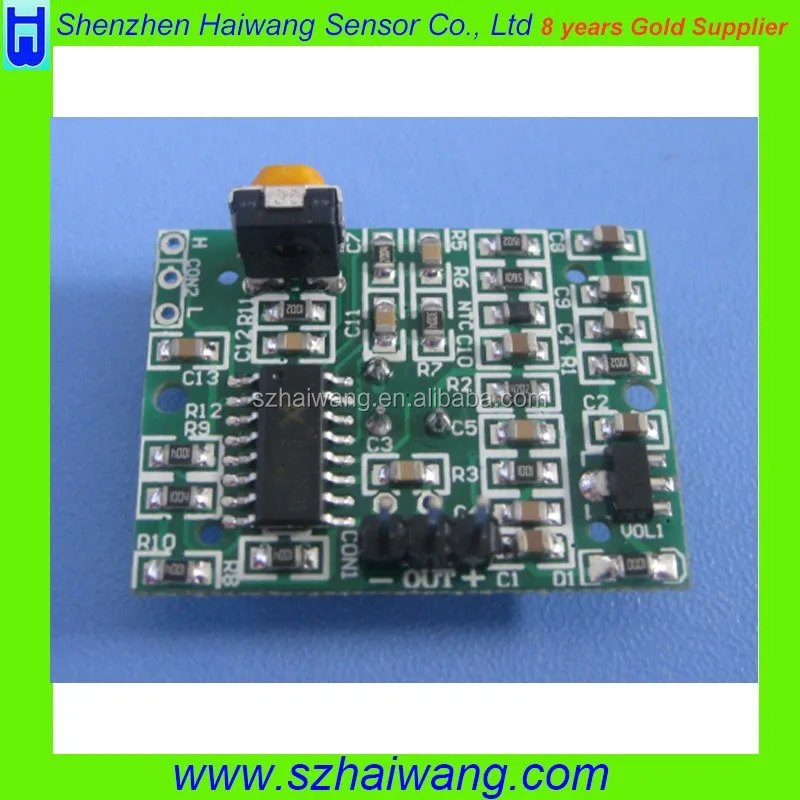

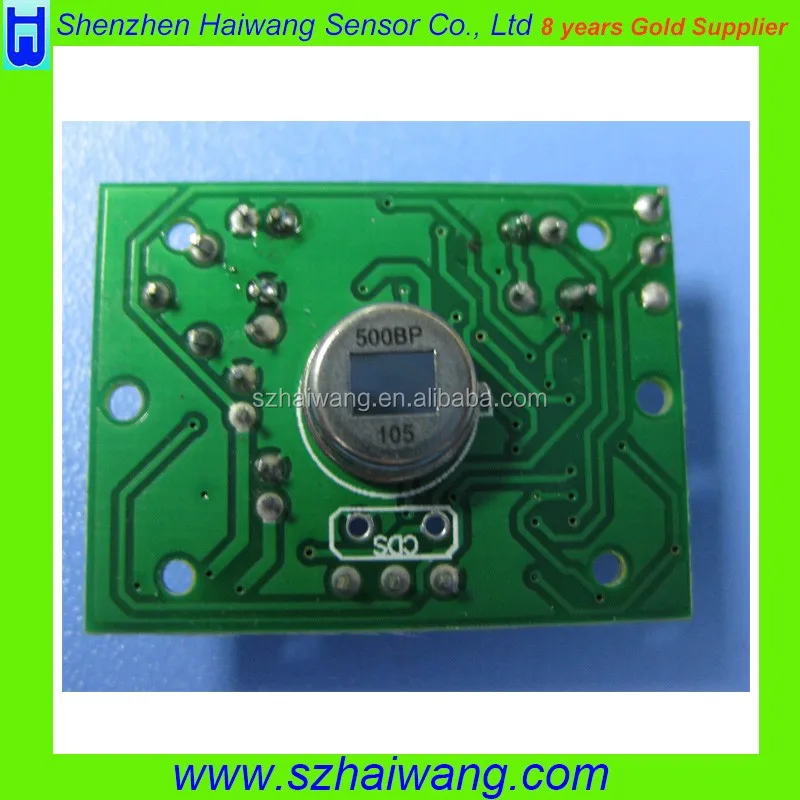

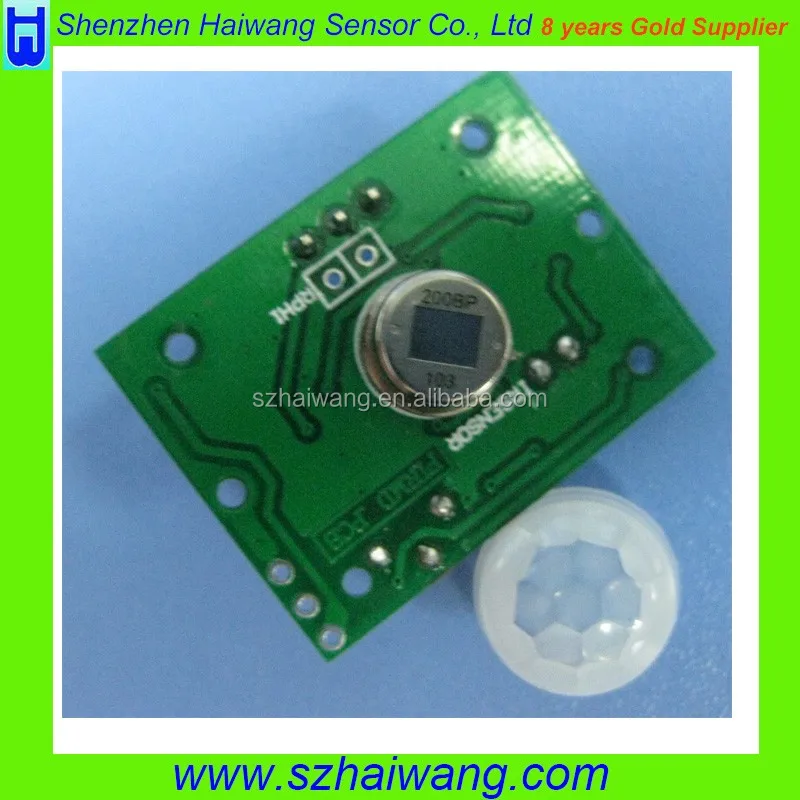

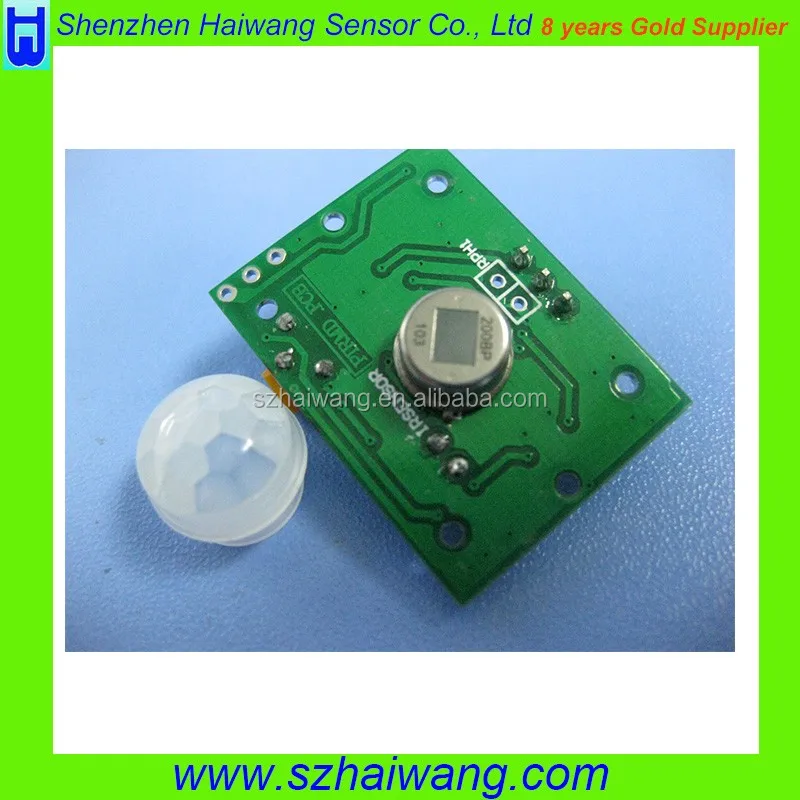

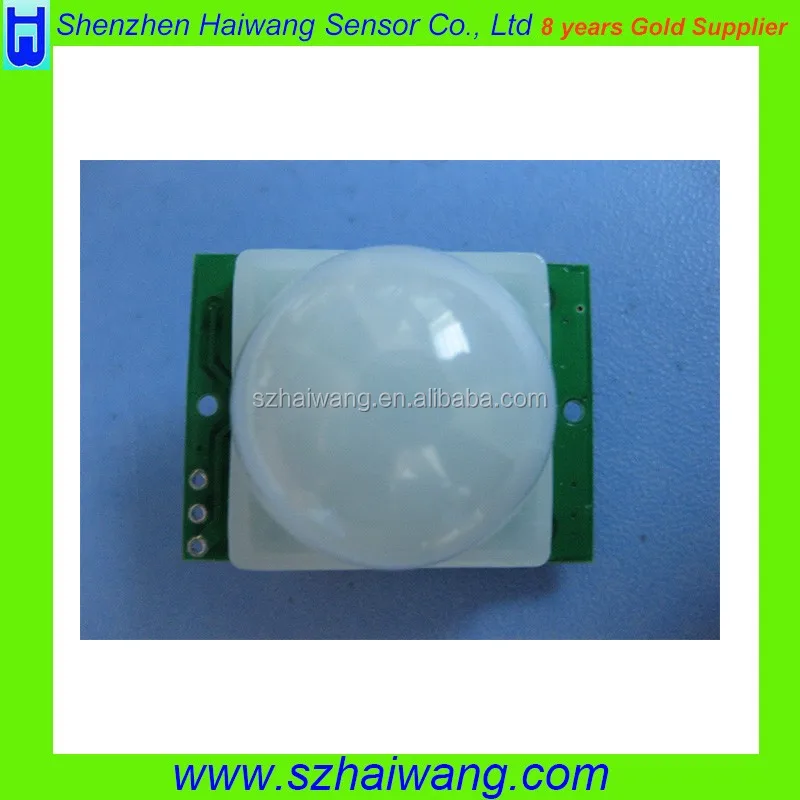

HW8002 is a pyroelectric sensor module which developed for human body detection. A PIR
detector combined with a fresnel lens(can choose different size) are mounted on a compact size PCB togather with an analog IC, BISS0001, and limited components to form the module. High level output of variable width is provided.
PIR Sensor module Features and Electrical Specification
Compact size (25 x 35 mm) Wide range of operation voltage 4-12V
Special output pilse width can be requested
TTL output can be directly connected to micro controller or logic device
High RFI immunity
Power up delay 25sec
Delay time: 5seconds to 8 minutes(as customer requirement) Operation Temperature: under -20 degree to 70 degress Infrared sensor: dual element, low noise, high sensitivity Light sensor: CdS photocell (can be add as customer requirement)
PIR control module HW8002
Operating Voltage Range
DC Voltage 3V ~ 12V
High 3.3 V / Low 0V (Can be customized)
0.5-200S ( adjustable ) range can be made few tenths - tens of minutes
(Can be customized)
2.5S ( default ) range can be few tenths - tens (Can be customized)
-20 - +70 degrees
0.5-27m (Can be customized)
We can custom the module as your request,welcome to ask me.OEM is highly welcomed.

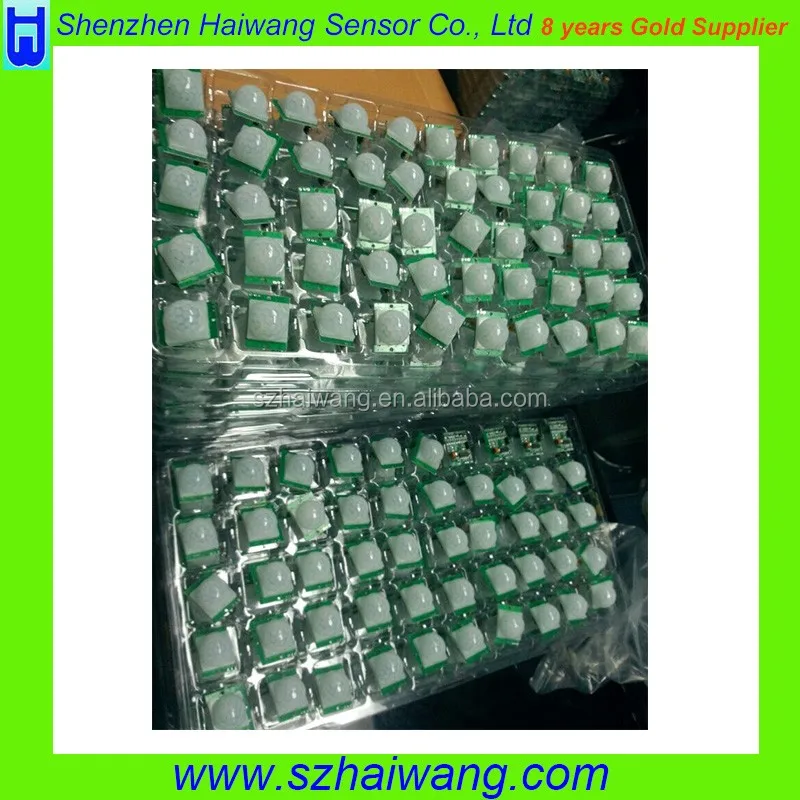

PIR Sensor module with China manufacturer Photoes
