HW8002 D203S PIR sensor module for long distance

FOB Reference Price:Get Latest Price
Other0.1-1.8 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HW
Model Number:
HW8002
Usage:
Infrared sensor
Theory:
Infrared sensor
Including:
pir sensor, pir ic, lens and pcb
Model:
HW8002
Operating volltage:
DC 4v-12v
Operation Current:
400mA at 3.3A
PIR Input Gain:
68dB
Operation Temperature:
-20C -70C
Dimension:
7*24*32mm(Not including lens)
Distance:
0.5-27m
Lens:
optional
SupplyAbility
SupplyAbility:
10000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard package
Port
SZ & HK
Lead Time :
About 10days

Specifications

1.Infared mould with sensor ,lens,wire .
2.D203S for pir sensor.
3.Operation Volage:4 - 12V.
4.PIR Input Gain:68DB



We can custom this model according to your special requirements.


Infrared sensor module No.: HW8002




Features and Electrical Data



1.Compact size :24 *32 mm
2.Supply current: DC4-12V

3.Current drain :< 1mA

4.Pcb+sensor+IC+lens etc

5.High sensitivity
6.Delay time:2s-70min(adjustable)

7. Operation Temperature: -20-70 oC

8.Infrared sensor:dual element, low noise, high sensitivity
9.Light sensor:CdS photocell  contain

10.Detect length:2-8m(adjustable)



Application:



Alarm detector,light switch,induction light,Intellectualixed toys or appliance,Security system etc.





Typical Applications for pir sensor module



1.sensor switch for lighting

2.ir camera system

3. motion detection lamp, led bulb, led tube, etc.

4. alarm system

5. intelligent toys

6.other products that need to detect human


 Spec as following:



 HW8002 pir sensor module.JPG



HW8002 is a pyroelectric sensor module which developed
for human body detection. A PIR detector combined with a
fresnel lens are mounted on a compact size PCB together
with an analog IC, HW8002 and limited components to
form the module. High level output of variable width is
provided.)

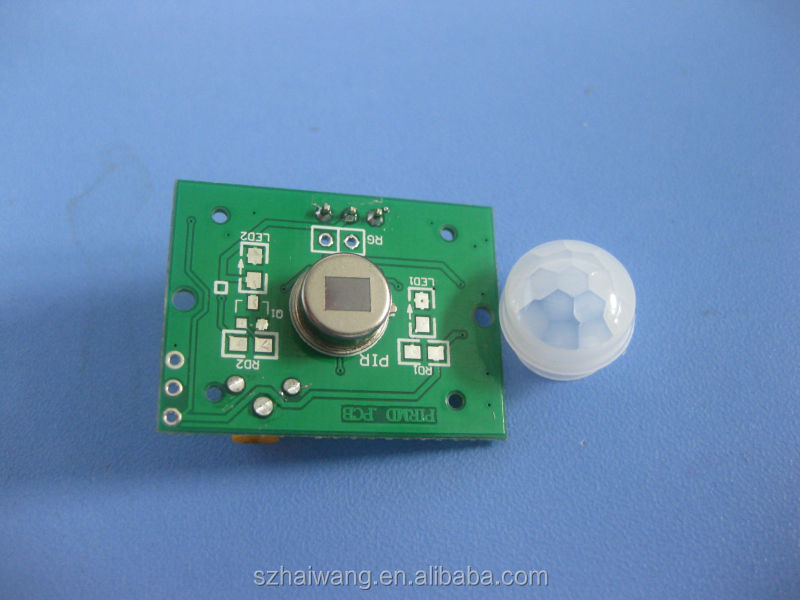

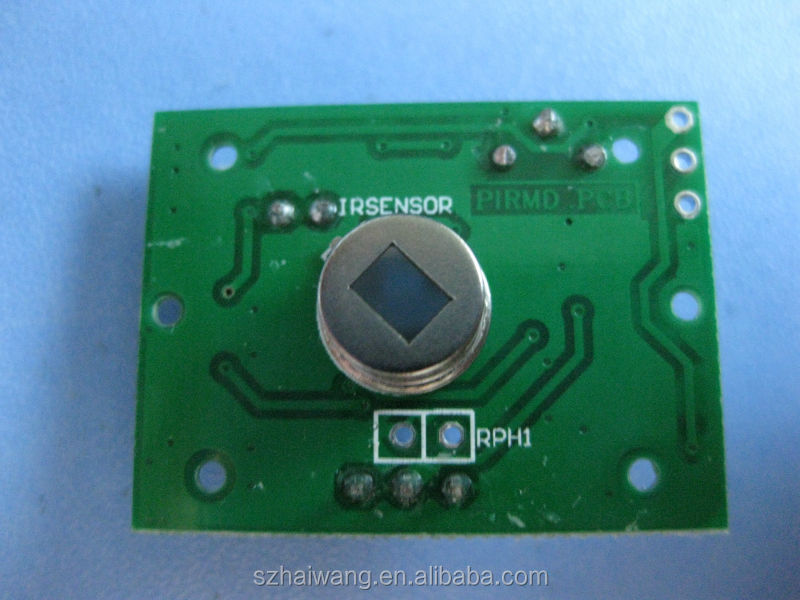

pir sensor module hw8002 from haiwang company.JPGpir motion detector module.jpgBack side about HW8002 PIR MODULE.jpgHW8002 Motion sensor module.jpgFront side HW8002 Pir sensor with Re200B.jpg

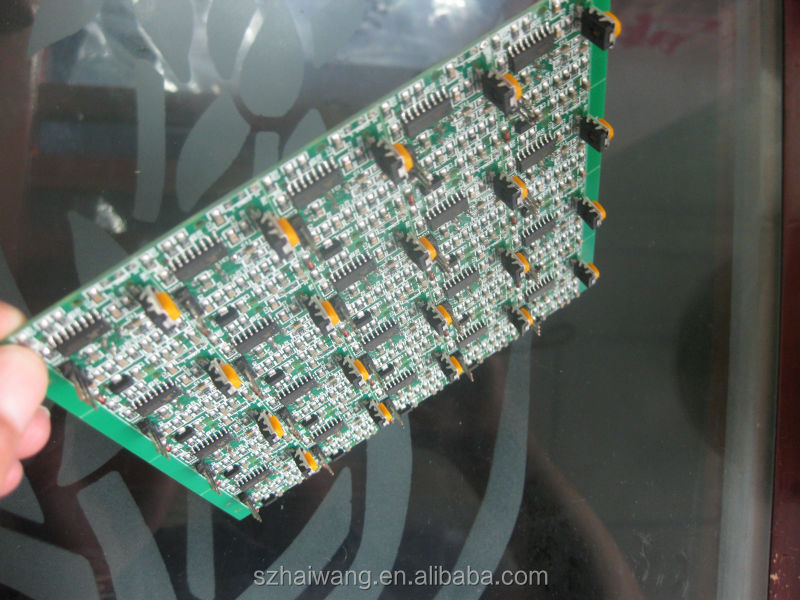

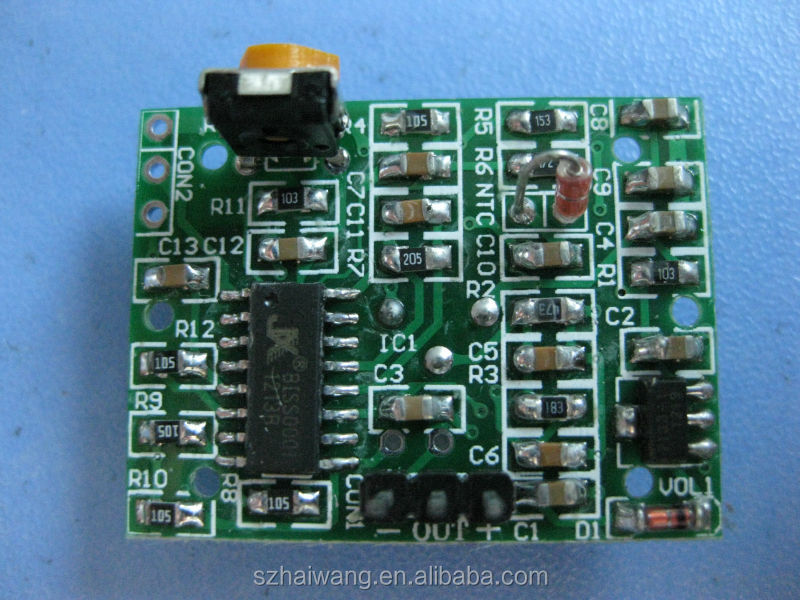

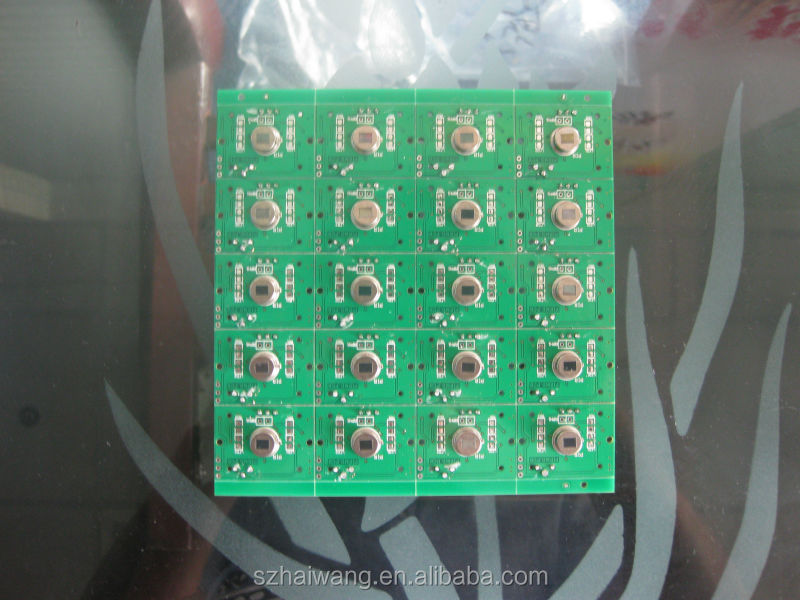

HW8002 PCB board.JPGIMG_0077.JPG
